AirDog® II-5G, DF-165-5G 1989-1993 Dodge Cummins *COMING SOON*

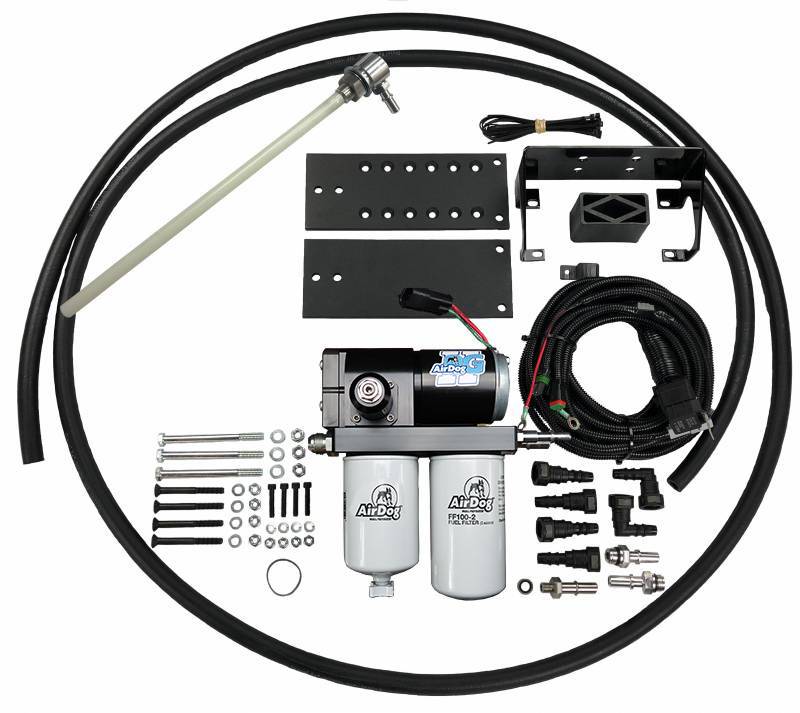

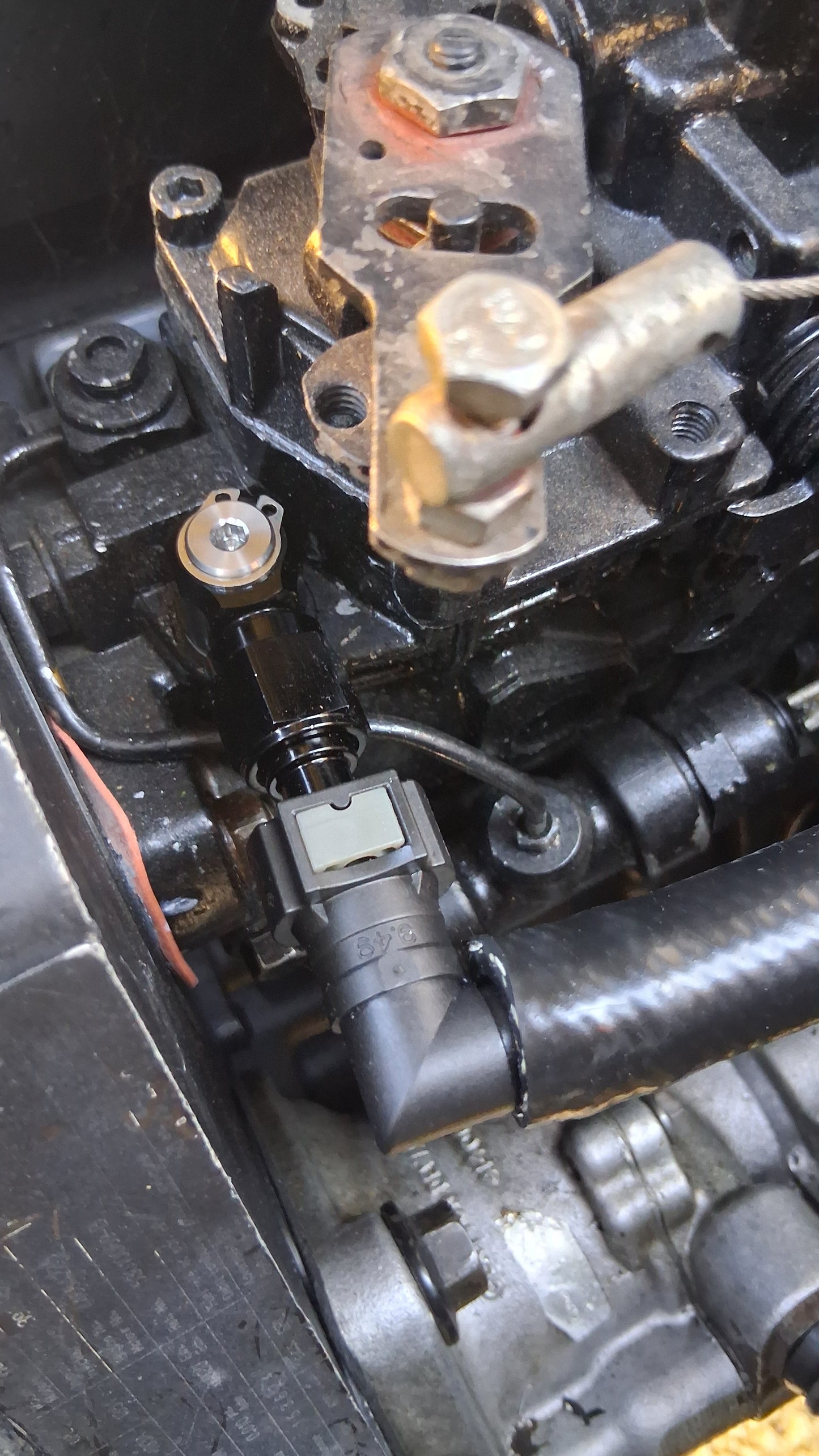

This is the AirDog® II-5G DF-165-5G fuel system for the 1989-1993 Dodge Ram 12V VE-44 5.9L Cummins. This diesel lift pump mounts to the inside of the frame rail using the supplied sandwich plate mounting system. A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a factory-style 1/2" bulkhead fitting. The pressure side connects directly into the side of the injection pump, bypassing the factory fuel filter housing and factory mechanical fuel pump. The AirDog® Air/Vapor return is sent back to the tank through the factory 3/8” suction line once the module is modified. This is a 165GPH (Gallon Per Hour) lift pump system for moderately modified trucks. Check out our installation manual for a list of parts that are included with this kit.

The Airdog 5G 165 is the answer for your high horsepower VE trucks. Although this provides great reliability and filtering from stock horsepower to 800 horsepower, it will be the upgrade to your current HVLP lift pump. For the most ease of install, you will want to utilize a sump on the bottom of the tank.
